What you and @LoneTech are saying definitely makes sense when you look at the pictures. There are clearly pixels being wasted/improperly addressed. The numbers on the gauges in DCS seem to make that clear.
3 Likes
Not really. The pixel density is per eye, so in the overlap region, you see superimposed pixels of the same density.
1 Like
Exactly! The 0s are white blobs without any black in the center. Thatās not an artifact of the G/RB subpixels or of the upscaling. Those black pixels are gone; that should not happen for an upscale.
5 Likes
Itās possible that the two panels of the 8K split the sub-pixels in different directions, you would get an illusion of more detail based on the combined images that canāt be seen in individual lens shots. I donāt know if thatās whatās happening, but it seems like something that could be done in theory. Maybe someone should test if thereās a difference between the visibile detail with 1 eye closed. That might also explain Sweviversā indescribable detail at a distance with the 8K that defies camera shots.
1 Like
This fits the theory that this is a G/RB panel.
With a G/RB panel we would have half of the (sub)pixel compared to a RBG stripe panel. So the 2.25 factor between 5K and 8K panel would diminish to 1.125. However the 5K uses 9% smaller panels with the same lenses. 1.125/1.09 = 1.032, which means that the 8K has 3.2% more pixel than the 5K. This is pretty that what your results indicate.
5 Likes
I was doing up some interesting reading. Pentiles have an unusual sub pixel pattern that the display controller uses an algorithm to adjust input to match.
Now this could be maybe adapted into the 8k firmware or adjusted in pi rendering as I believe was suggested by @LoneTech.
The 4k model from what I read up on rainbow rgb is also not what one would consider full rgb either.
If you refer to the Rainbow-RGB in the LS055D1SX04, that is full RGB 3840x1440 with a scrambled subpixel order (permutation varies in a 6 line sequence, presumably to break up subpixel lines). By the same class of interpretation, the 8Kās panel is full RGB 3840x1080 or 1920x2160, with a 2 line pattern (with diagonal subpixel lines both ways). And if we could feed it like what it is, we wouldnāt be messing with scalers at all.
I spent a bit of time trying to illustrate what the scaler levels end up doing: Scaler artifact images - Google Drive ā¦ and Iām sure thereās plenty of vague stuff Iāll get roasted for. For instance, Iām aware the colour channels donāt line up perfectly and thereās a bit of colour bleed. And youāll have to back away from the monitor, because the artifacts will be cancelled (or exagerrated) if you scale the image down.
2 Likes
This forum is going mad again. So much speculation and pixelcounting here.
Facts are:
- Nearly everyone (testers, backers on meetup) said the SDE is less on the 8k
- Nearly everyone said both are superior than current HMDs on the market
- Nearly everyone said both are great
Pimax never mentioned a 8k+ anywhere. There is no 8k+. This just a naming thing. When pimax brougt their new secret prototype to the backer meetup it didnāt even have a name. The testers decided to name it 5k+ and pimax liked it.
At the moment people get very skeptical again. I think it will turn into anther direction again when the first HMDs are shipped and people report on it. This forum is a rollercoasterā¦
->
-> -> -> ->
3 Likes
arrg. I posted in the wrong thread, i think. Dosnāt matter. Works anywhere here
2 Likes
What others said (pixel having less subpixels not relevant for SDE as long as it is used/lit). But maybe also because on 8K it is kind of checkerboard pattern which is probably less noticeable than long straight lines pattern of 5K+ SDE. On the picture I notice both equally well but it is probably different in the HMD.
2 Likes
And youād be hard pressed to get anyone to explain what they mean by SDE, let alone figure out if two people mean the same thing. The SDE on both models is existant, visible, and has different character. Personally Iām rather peeved that the 8K was engineered with needless aliasing and blurring, and ends up having fewer dots than the 5K+. I donāt know about the subpixel pattern of the 5K, but hereās what it works out to with 5K+ and 8K:
Main pixel grid resolution: 2560x1440 vs 3840x2160
Subpixels (dots) factor: 3/3 vs 3/6
PPI boost (panel size / utilization): 9% vs 0% (reference)
Visible dots proportional to: 13.14M vs 12.44M
>>> 2560*1440*3*3/3*1.09**2
13139435.520000001
>>> 3840*2160*3*3/6*1.0**2
12441600.0
Itās a small enough difference to make it reasonable to choose between the two on taste alone. The amazing part is that the 5K+ panel is so much better matched to the optics (but that could be misrepresentation; perhaps the 9% were not linear but area?), and the disappointing part that half the subpixels are just missing on the 8Kās panel.
Back to SDE. The 5K+ panel has obvious horizontal and vertical grid; the 8K panel distracts from itā¦ using obvious diagonal lines. On e.g. Vive, the primary factor in SDE is the low fill ratio; the dots are far too small, and we see wide gaps between them. The 5K+ panel instead has visibly square pixels; you can notice their jagginess. Thatās what the 8K panel avoids, but instead has larger gaps (but a lot of diffuse light across them), diagonal lines, and notable blurring. Itās possible to prefer either. Personally I was hoping for something that didnāt have less subpixels than the pentile penalty.
In terms of panel (not image) pixels per degree, we can estimate the 5K+ to 1440/120=12 and the 8K to 2160/1.09/sqrt(2)/120=11.7. Practically identical.
6 Likes
Check at 33:30. Carmack says there arenāt many small 4K panels available on the market at the moment. Phone makers arenāt rushing to develop them, not worth it apparently. Development will have to come from the VR industry.
1 Like
It is the next checkpoint. With new Steve Jobs and new Zuckerbergs. But there are only 2 of them spinning the wheels every generation.
1 Like
There is definitely something wrong with the 8K (3840x2160) panels considering the 2560x1440 panels (only 44% of the resolution), looks significantly better.
2 Likes

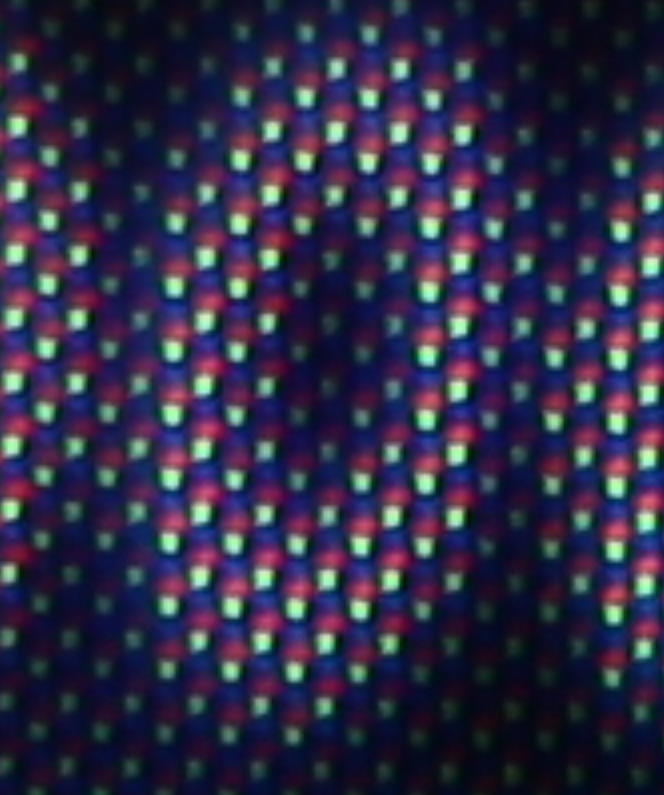

Thatās the best shot of the pixel matrix which has been posted. Thanks!
The RGB subpixels do not form a square, so (to me) it still looks like an individual pixel is either green or red/blue, just like I proposed back when @SweViver posted his pixel matrix shots.
1 Like
Thats indeed a great shot, much appreciated!
3 Likes
Is it true, the Pimax 8K will have potentially improved image using next gen 7nm cards, e.g. GPU in 2020 because with more GPU power youāll be able to increase SS to a higher level than is currently possible on a 2080 TI?
If so, thatās one saving grace for the 8K, whose picture is slightly more blurry compared to the 5K+ due to upscaling 1440p, not just panel design difference - upscaling to horizontal 8K presumably using GPU power Vs leaving resolution at native 1440p hence the 5K+ is faster FPS with the same GPU?
1 Like
No one can tell, it depends on whether they can do some magic with Pitool (e.g. maybe prepare better source image with concrete upscaler/subpixel matrix of 8k in mind). With current implementation (or more precisely the ones testers used) the raw power itself will not do it. Even on maximum possible super-sampling (getting ~1fps) the image still looked sharper on 5k+ compared to 8k as far as I remember. But it will probably improve 8k more than 5k+ (hence why 5k+ has lesser GPU requirements).
2 Likes
I donāt understand if the image quality of the 8k is limited by the scaler, how could an image be improved? I understand post processing, but you do lose something. Turning a raw image into a jpeg will never have the sharpness of the raw image, especially since the jpeg is a smaller format that is then scaled to the original size.
